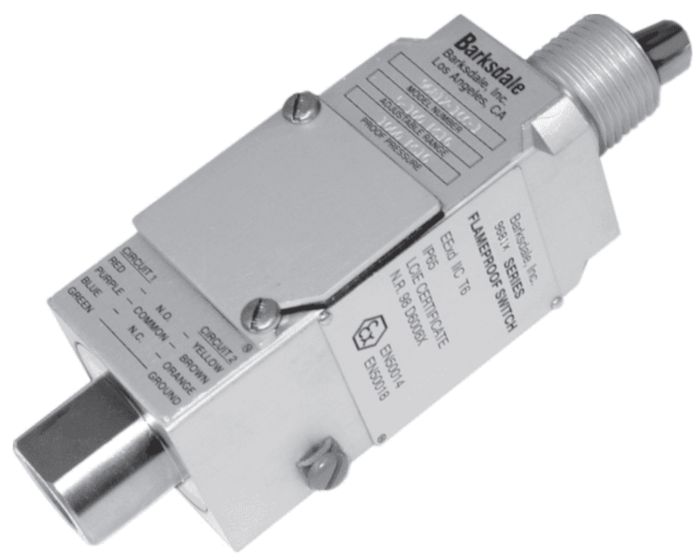

Barksdale ATEX Pressure Switch, 5000-10000psi, Viton, 1 Amp SPDT GOLD Contacts, 9692X-1GH-7

Special Price $485.63 was $555.00
SKU
Barksdale-ATEX-Pressure-Switch-9692X-1GH-7
Barksdale ATEX/IECEx Pressure Switch 9692X-1GH-7, 5000-10000psi

SPDT 1 Amp GOLD Relay, Viton Seal
BARKSDALE ATEX Piston Pressure Switch 9692X-1GH-7 is a self-contained pressure sensor with a pressure range of 5000-10000psi. Adjustable range decreasing is 5000-8800 and adjustable range rising is 5200-10000. Deadband is 200-2000. Pressure connection is 1/4 inch NPT female with Viton O-Ring. Proof Pressure is 15000 PSI.

SPDT GOLD Contact rating is 1 amp @ 125 VAC

Explosion-Proof Stainless Steel NEMA 4X, 7 and 9 ratings.

ATEX, IECEx Approved and UL/CSA Approved for hazardous locations; CLASS I, Groups A,B,C & D; CLASS II, GROUPS E,F,& G (GROUP A, UL Only).

Electrical Connection is a male 1/2" NPT Conduit fitting with 18 inch leads.

Barksdale ATEX/IECEx/IECEx Pressure Switch model 9692X-1GH-7.

Specifications
Brand Barksdale
MFR Part Number 9692X-1GH-7
Type Barksdale Series 9692X
Application Industrial Automation
Exact Amperage (Amps) 1
Color Silver
Material Stainless Steel
Condition New
Explosion Proof Yes
Install Options Indoor
Model Barksdale ATEX Pressure Switch 9692X-1GH-7
NPT Size (Inches) 1/4
Phase 1
Product Dimensions (Inches) 5.03 x 1.72 x 1.5
Voltage (Volts) N/A
PSI Range 5000-10000
Water Resistant/Hosedown Yes
Warranty 1 year
