SE - Chromalox SRP Heating Cable 387196, 208 - 277 VAC, 10 Watts/Foot, Fluoropolymer Overjacket, High Temperature

Overview

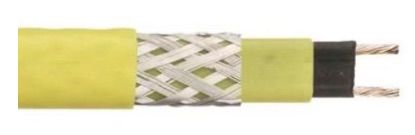

Chromalox SRP self-regulating heating cable provides safe, reliable heat tracing for process temperature maintenance and freeze protection of pipes, valves, tanks and similar applications. Constructed of industrial grade 16 AWG buss wire with metal tin copper braid and Fluoropolymer overjacketing, SRP ensures operating integrity in most hostile industrial environments.

Chroamlox SRP Cable can be used for up to 660 feet, can be field spliced, used on metal or plastic pipes and maintain up to 230 degree temperature (with insulation).

Chromalox Self Regulating Cable can be over lapped and can be spliced without loss of heat from the heating cable.

The cable is certified for hazardous areas when used with appropriately rated accessories.

Approvals include UL, CSA, FM, ATEX and IECEx. This Chromalox catalog number SRP-10-2CT is 208 - 277 volts and 10 watts per foot at 50 degrees F. The Chromalox part number is 387196.

Specifications

Specifications
Brand	Chromalox
Model	Chromalox SRP Heating Cable 387196
MFR Part Number	387196
Old MFR Part Number	SRP10-2CT
MPN Alternate	SRP-10-2CT
Condition	New
Install Options	Indoor/Outdoor
Heater Type	Heating Cable
Wattage (Watts)	10.00
Watts per Foot (Watts / Foot)	10
Color	Yellow
Material	Polymer
Phase	1
Product Dimensions (Inches)	.5 x 12
Voltage (Volts)	208-277 VAC
Warranty	1-year limited warranty

Warranty Info

Chromalox warrants its Products against defects in material and workmanship for at least one (1) year (three (3) years on some controls) from the date of delivery, provided such Product is properly applied, used and maintained. Refer to the express written warranty time period for each individual Product or contact the relevant Chromalox plant for such warranty time period information. Chromalox does not warrant any Product against damage from corrosion, contamination, misapplication, improper specification or wear and tear and operational conditions beyond Chromalox's control. The terms of this Warranty are the exclusive terms available to Buyer and to any other person or entity to whom Products are transferred during the period of this Warranty. No person has authority to bind Chromalox to a representation or warranty other than this express Warranty. Chromalox shall not be liable for incidental or consequential damages resulting from the use of Products whether a claim for such damages is based upon warranty, contract, negligence or other cause of action. Should any Product fail while subject to this Warranty, such Product shall be repaired or a substitute Product shall be provided, at Chromalox's option, at no charge to Buyer or to any other person or entity to whom Product is transferred during the period of this Warranty. Chromalox must be notified of the alleged failure of Product within thirty (30) days of such event and advanced authorization for repair or replacement must be obtained in writing from Chromalox. THIS WARRANTY IS MADE EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY ARISING FROM A COURSE OF DEALING OR USAGE OF TRADE, AND ALL OTHER SUCH WARRANTIES ARE SPECIFICALLY EXCLUDED. THE CORRECTION OF ANY DEFECT IN OR FAILURE OF PRODUCTS BY REPAIR OR REPLACEMENT TO THE EXTENT SET FORTH ABOVE, SHALL BE Chromalox'S LIMIT OF LIABILITY AND THE EXCLUSIVE REMEDY FOR ANY AND ALL LOSSES, DELAYS OR DAMAGES RESULTING FROM THE PURCHASE OR USE OF THE PRODUCTS. IN NO EVENT SHALL Chromalox BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES. Chromalox SHALL NOT BE LIABLE FOR, AND BUYER AND ANY OTHER PERSON OR ENTITY TO WHOM PRODUCTS ARE TRANSFERRED DURING THE PERIOD OF THIS WARRANTY ASSUMES RESPONSIBILITY FOR, ALL PERSONAL INJURY AND PROPERTY DAMAGE RESULTING FROM OR RELATED TO THE HANDLING, POSSESSION OR USE OF PRODUCTS AND PRODUCTS MANUFACTURED AND SOLD BY Chromalox HEREUNDER.

Downloads

Chromalox SRP High Temperature Heating Cable
