MDI Solid State Relay, 20-280 AC volt Control, 25 Amps, Single Pole, HPR48A25

Special Price $39.00 was $44.00

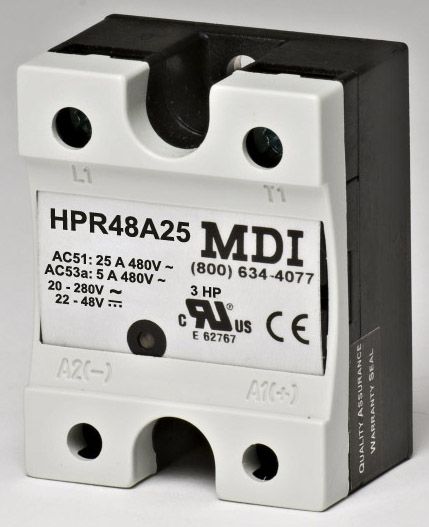

MDI Solid State Relay HPR48A25 Normally Open

20-280 VAC Control and 25 Amps
MDI Solid State Relay Contactor HPR48A25, single pole, 25 amps, 0 - 100 volts output, 20-280 volts AC or 4-32 vdc Control Voltage. MDI Solid State Relays can switch up to 100 volts AC based on amperage load and ambient temperatures. MDI solid relays can switch millions of cycles, out performing mechanical relays. The industrial, 1-phase relay with anti-parallel thyristor output is the most widely used industrial SSR due to its multiple application possibilities. The MDI SSR relay can be used for resistive, inductive and capacitive loads. The zero-switching relay switches ON when the sinusoidal curve crosses zero and switches OFF when the current crosses zero. The instant-on relay with DC control input can be used for phase control. The built-in varistor secures transient protection for the heavy industrial applications, and the LED indicates the status of the control input. The clip-on cover is securing touch protection to IP 20. Protected output terminals can handle cables up to 16mm_. 1 Year Warranty. CE, UL approved and CSA listed.
Brand MDI
MFR Part Number HPR48A25
Old MFR Part Number RM1A23A25
MPN Alternate RM1A23A25
Application Industrial Heating
Number of Poles 1
Color Black and White
Condition New
Explosion Proof Yes
Install Options Indoor
Model MDI Solid State Relay HPR48A25
Phase 1
Product Dimensions (Inches) 2 x 2 x 2
Amperage (Amps) 25
Voltage (Volts) 20-280 VAC
Water Resistant/Hosedown Yes
