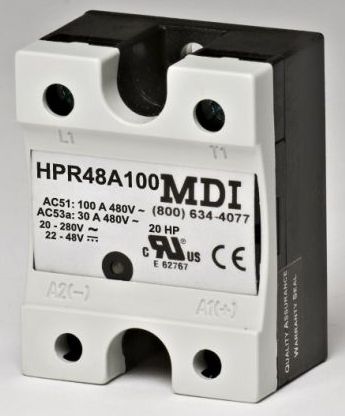

MDI Solid State Relay, 20-280 AC volt Control, 100 Amps, Single Pole, HPR48A100

Special Price $115.00 was $119.00
SKU
MDI-Solid-State-Relay-HPR48A100
MDI Solid State Relay HPR48A100 Normally Open

20-280 VAC Control and 100 Amps
MDI Solid State Relay Contactor HPR48A100, single pole, 100 amps, 0 - 100 volts output, 20-280 volts AC or 4-32 vdc Control Voltage. MDI Solid State Relays can switch up to 100 volts AC based on amperage load and ambient temperatures. MDI solid relays can switch millions of cycles, out performing mechanical relays. The industrial, 1-phase relay with anti-parallel thyristor output is the most widely used industrial SSR due to its multiple application possibilities. The MDI SSR relay can be used for resistive, inductive and capacitive loads. The zero-switching relay switches ON when the sinusoidal curve crosses zero and switches OFF when the current crosses zero. The instant-on relay with DC control input can be used for phase control. The built-in varistor secures transient protection for the heavy industrial applications, and the LED indicates the status of the control input. The clip-on cover is securing touch protection to IP 20. Protected output terminals can handle cables up to 16mm_. 1 Year Warranty. CE, UL approved and CSA listed.
Specifications
Brand MDI
MFR Part Number HPR48A100
Old MFR Part Number RM1A23A100
MPN Alternate RM1A48A100
Application Industrial Heating
Number of Poles 1
Color Black and White
Condition New
Explosion Proof Yes
Install Options Indoor
Model MDI Solid State Relay HPR48A100
Phase 1
Product Dimensions (Inches) 2 x 2 x 2
Amperage (Amps) 100
Voltage (Volts) 20-280 VAC
Water Resistant/Hosedown Yes
